ACO ThresholdDrain OnePour Stainless frame with Stainless 5 Star Heelsafe® Anti-Slip grate

ACO ThresholdDrain OnePour Stainless frame with Stainless 5 Star Heelsafe® Anti-Slip grate

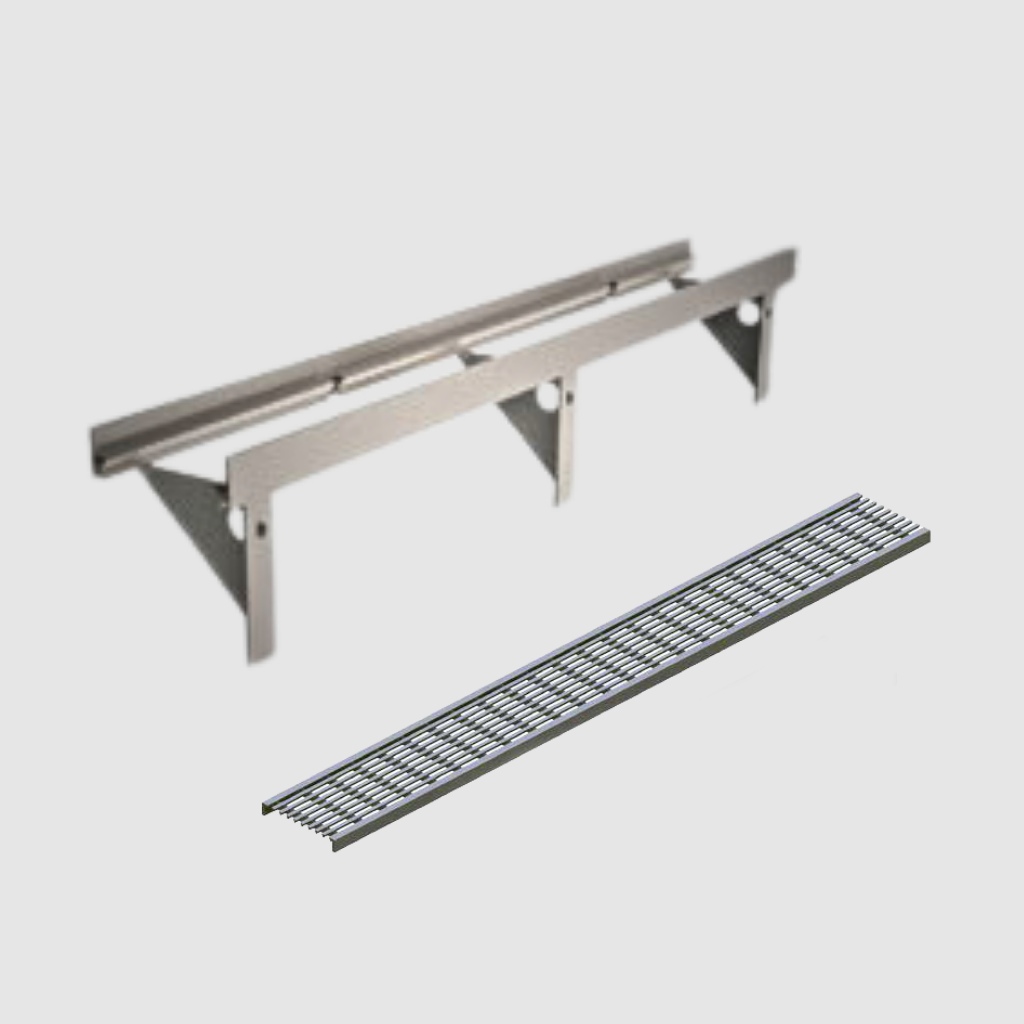

A set of 1x Stainless Steel frame and 1x Stainless Steel 5 Star Heelsafe® Anti-Slip grate for level threshold drainage.

• Designed to comply with level threshold requirements in E2 External Moisture of the New Zealand Building Code.
• No supports or legs impede drainage channel and are completely interdependent of joinery/cladding.
• HeelSafe® grates offer anti-slip properties in addition to slots 10mm or less.
• Grates complying with Clause 9—AS 1428.2, Access and Mobility, ensuring safe passage of walking canes and wheelchairs

Part No.: 143351 (Set)

Frame Specification

ACO Threshold – OnePour stainless steel frame
The frame shall provide a 100mm wide drainage opening and a 12mm open slot between the frame and the door assembly.

• Dimensions: 1000mm (L)
• Weight: 4.3kg

Grate Specification

Stainless 5 Star Heelsafe® Anti-Slip grate.
Certified to AS 3996 Load Class B (80kN)

• Dimensions: 500mm (L) x 123mm (W) x 20mm (H)
• Weight: 3.2kg

Typical Applications

• Level entry thresholds
• Balconies
• Outdoor decks
• Entertaining areas
