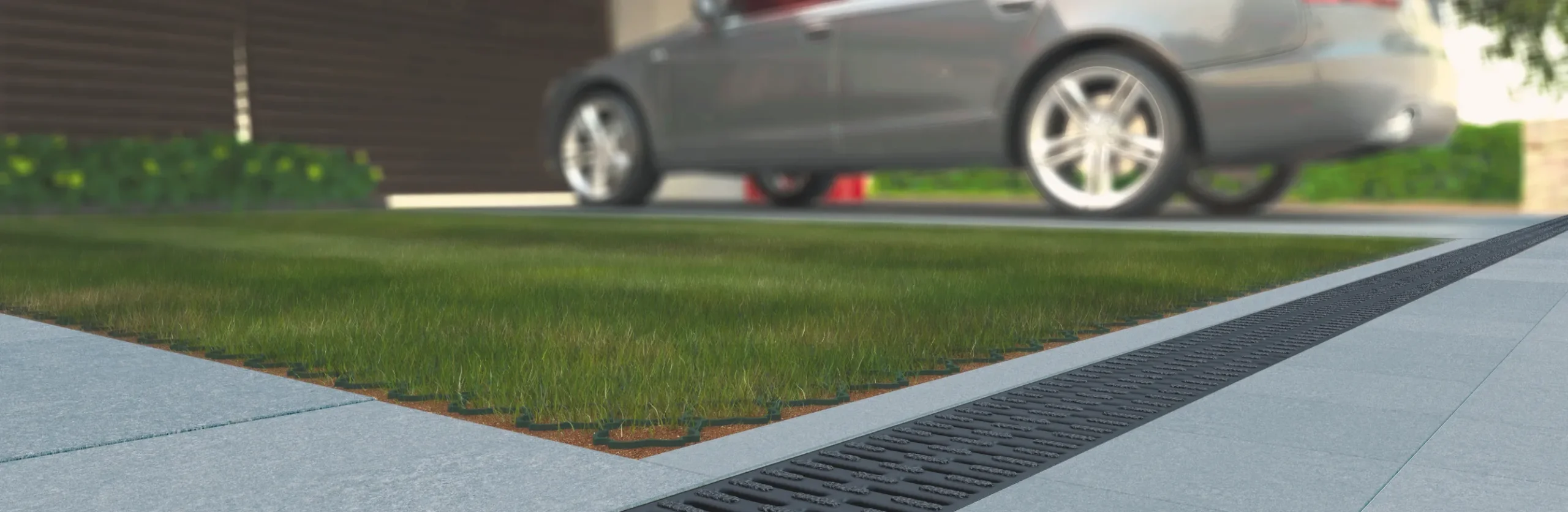

residential drainage

ACO HexaLine Drainage System – The Smart Solution for Residential Water Management

A durable, lightweight, and easy-to-install drainage system designed to keep your driveways, patios, and walkways dry and safe.

yesStops Water Pooling – Prevents flooding, erosion, and surface damage

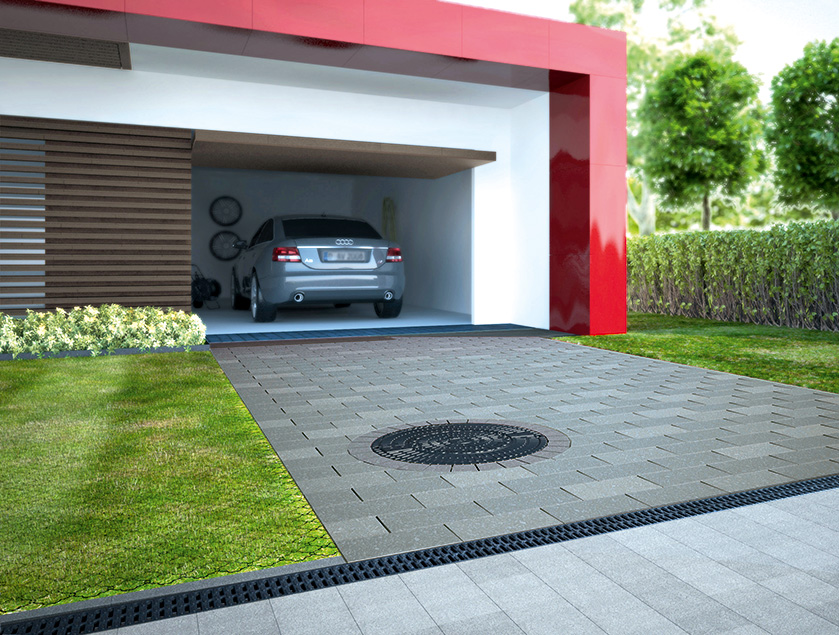

yesIdeal for Residential Use – Perfect for driveways, patios, and gardens

yesQuick & Easy Installation – Lightweight, modular design for simple DIY setup

yesDurable & Weather-Resistant – Made from high-quality polypropylene, resistant to wear and corrosion

yesSleek & Functional Design – Different grating styles to match any outdoor space

yesLow Maintenance – Snap-fit grates for easy cleaning

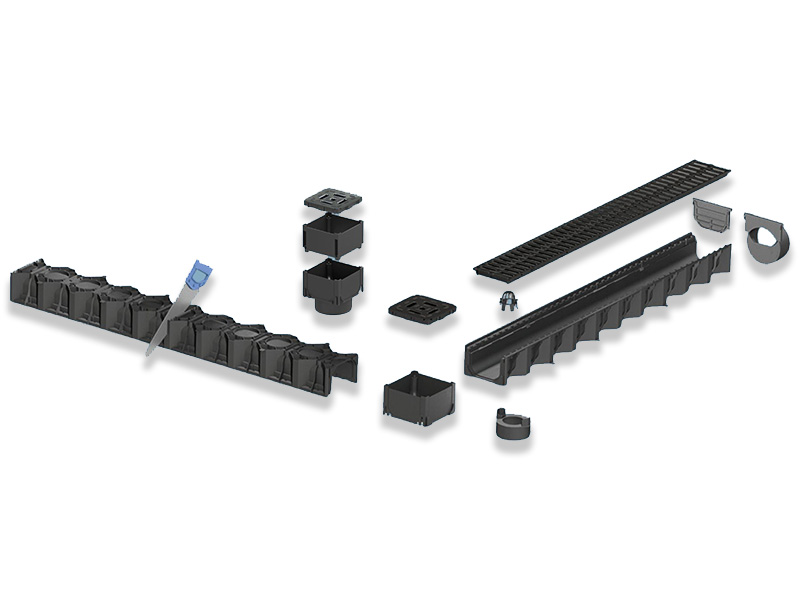

ACO HexaLine system
stop water pooling

Water pooling on your property?

The ACO HexaLine system provides an efficient and stylish solution for managing rainwater around your home.

Designed specifically for residential applications, this drainage system is lightweight, durable, and easy to install—making it the perfect choice for homeowners looking to upgrade their outdoor drainage without professional assistance.

Made from high-quality polypropylene, HexaLine channels are resistant to corrosion and wear, ensuring long-lasting performance.

The system is compatible with a range of grating options, including plastic microgrip and plastic Brickslot, allowing you to customise the look and functionality to suit your needs.

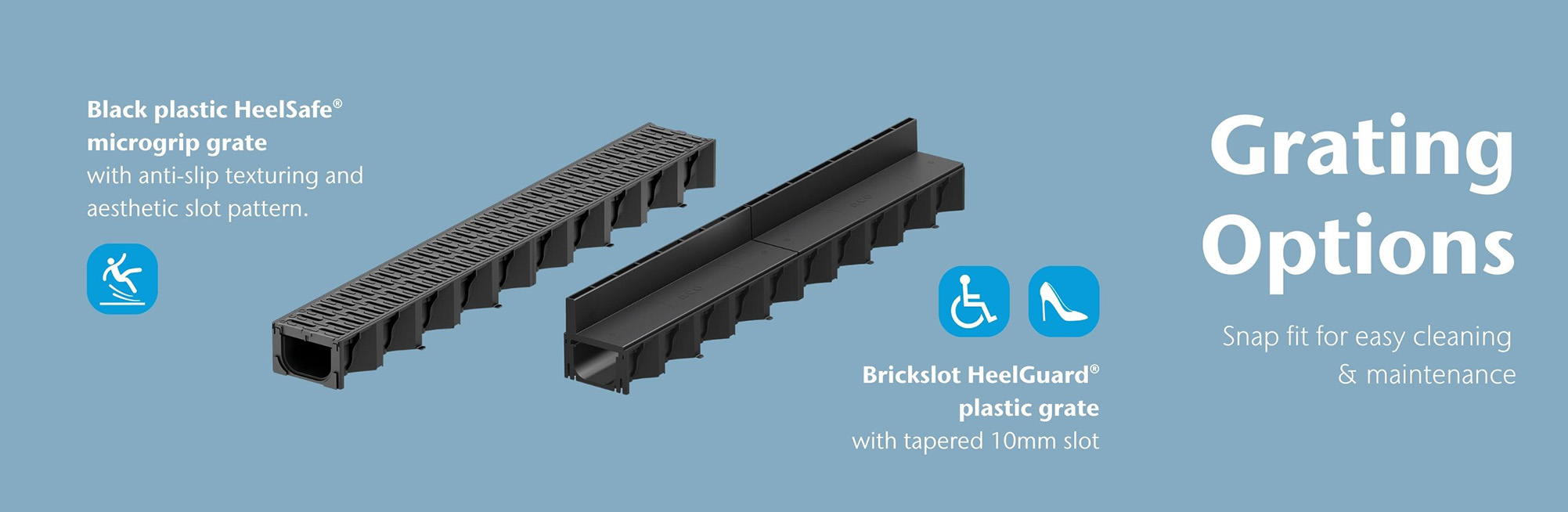

Hexaline grates
  • Material: Recyclable polypropylene
  • Length per channel: 1m
  • Load Class: Suitable for pedestrian and light vehicle traffic
  • Grating Options: Plastic microgrip, plastic Brickslot (for other grating options, please get in touch with our ACO Sales Team)
  • Installation Type: Snap-fit system, no specialist tools required
  • Maintenance: Removable grates for easy cleaning

Installing ACO HexaLine is straightforward — just follow these steps:

  1. Excavate & Plan – Dig a trench and fix a string line to determine alignment and final channel height.
  2. Lay a Firm Base – Create a concrete bed (300mm wide x 100mm deep) to provide a stable foundation. Keep the outlet pipe clean.
  3. Start at the Outlet – Begin laying the channels from the outlet, ensuring they are level and aligned using the string line. Seal joints if needed.
  4. Lay Channels – Continue placing channels, working away from the outlet. Slide-fit them together for a secure connection.
  5. Pavement & Backfilling – Pour 100mm concrete around channel sides, allowing space for pavement. Ensure the pavement finish is 2-3mm above the grate.
  6. Brickslot Integration (if applicable) – Install pavers, ensuring a 2-3mm slot for proper drainage. For traffic areas, bond pavers to the concrete haunch to prevent damage.

Watch Installation Video:  ACO Self HexaLine Installation

Is this suitable for driveways?
Yes, the ACO HexaLine system is designed for pedestrian and light vehicle traffic, making it ideal for driveways, patios, and walkways.

Can I install this myself?
Absolutely! The lightweight, modular design makes it easy to install without professional help.

What grating options are available?
In this shop we offer plastic microgrip or Brickslot grates to suit different aesthetic and functional needs.
